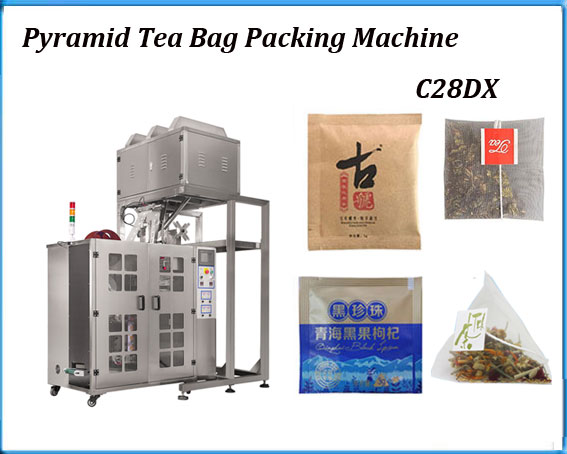

Germany pyramid tea bag packing machine:

|
Type: |
Tea Bag Packing Machine Series |
|
Product model: |
C28DX |
|
Product name: |
Germany pyramid tea bag packing machine |
|
Packing Material: |
Inner Bag: Nylon mesh; Non-woven fabric; PET; PLA; 100% biodegradable transparent material. Outer Bag: Kraft paper/aluminum coating; PE/aluminum coating; PE film |
|
Filling range: |
1~10g/bag, accuracy:≦±0.1g/bag |
|
Filling method: |
Electric scale |
|
Packing roll width: |
140mm, 160mm, 180mm |
|
Sealing length: |
50, 60, 70, 80mm |
|
Outer bag size |
W: 80-100mm; L: 90-120mm |
|
Sealing method: |
Inner Pyramid Bag by ultrasonic sealing and cutting |
|
Bag type: |
Inner pyramid bag with outer envelope |
|
Quantity of sealing device: |
2 sets |
|
Packing speed: |
50-70 bags/min (Kindly ask for details) |
|
Motor Power: |
220V, 50HZ, 1.5KW |
|
Air supply: |
≧0.6Mpa (Can be equipped with air compressor) |
|
Weight: |
500KG |
|
Dimension: |
3000*900*2300mm(L*W*H) |
The Germany pyramid tea bag packing machine, built upon Germany's foundation in precision manufacturing, is precisely tailored to the country's standardized and large-scale industrial production needs. Emphasizing durability, accuracy, and high efficiency, it is a core piece of equipment for mass production in large German tea companies. Germany is a major tea-consuming nation in Europe, with a market primarily focused on standardized mass-produced tea bags. Simultaneously, there is a strong emphasis on both product quality and production efficiency. This equipment perfectly aligns with these core requirements, inheriting the rigorous craftsmanship of German industry. It can operate stably for extended periods with a failure rate significantly lower than the industry average.
The Germany pyramid tea bag packing machine features a high-precision multi-head weighing system, with measurement errors strictly controlled within ±2%. This meets the stringent requirements of the German market for consistent tea bag weight. Packaging speeds can reach up to 50 bags/minute, supporting the production of large-capacity tea bags (maximum 7g), and can meet diverse specifications such as family packs, commercial packs, and customized hotel packs. Imported ultrasonic sealing technology, combined with multiple protective designs, ensures a smooth and secure seal with minimal waste. It also supports automatic label installation, enhancing the product packaging's quality. The machine's compact structure facilitates easy maintenance, adapts to the standardized layout of German factories, and boasts strong power adaptability, allowing for flexible integration into existing production lines.
The Germany pyramid tea bag packing machine is compatible with mainstream tea varieties in the German market, including black tea, oolong, fruit and herbal blends, and more. It supports double-layer and multi-layer packaging of composite tea materials, balancing flavor preservation with airtight packaging. The entire process complies with EU food packaging hygiene standards, and all parts in contact with tea are made of food-grade materials to prevent contamination. It perfectly meets the core requirements of efficient, precise, reliable, and standardized German industrial production, helping tea companies improve production capacity and product competitiveness.
