Mexico pyramid tea bag packaging machine

BASIC INFO

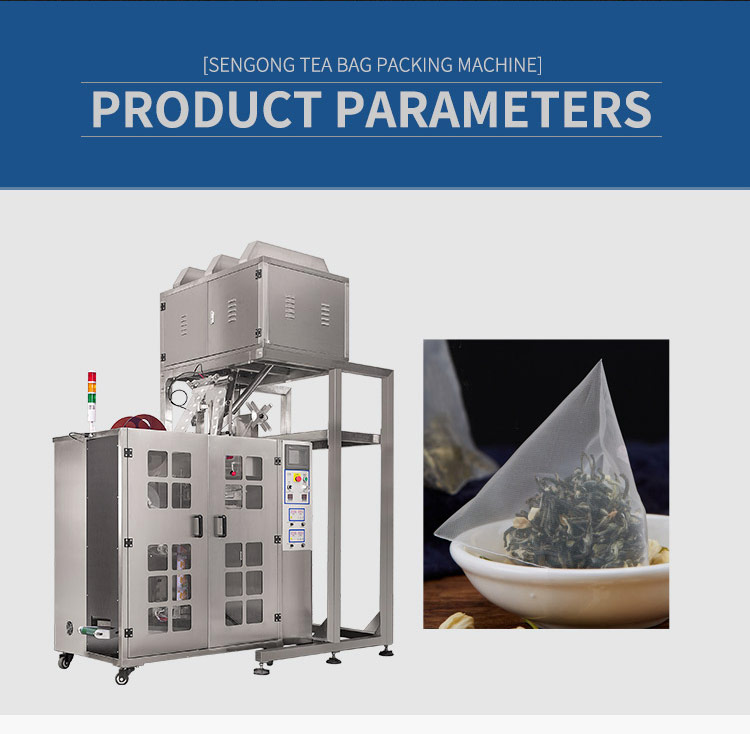

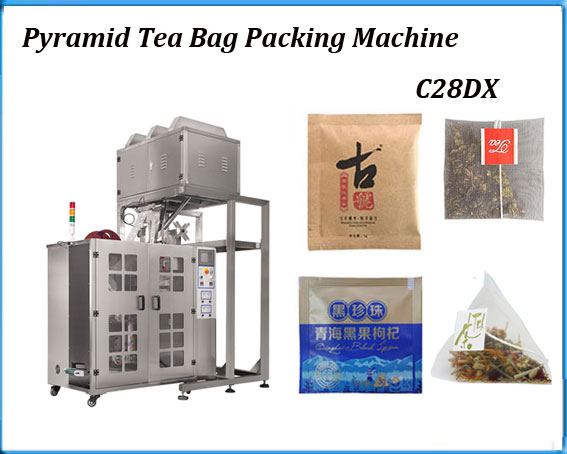

Mexico pyramid tea bag packaging machine:


Type:

Tea Bag Packing Machine Series

Product model:

C28DX

Product name:

Mexico pyramid tea bag packaging machine

Packing Material:

Inner Bag: Nylon mesh; Non-woven fabric; PET; PLA; 100% biodegradable transparent material.

Outer Bag: Kraft paper/aluminum coating; PE/aluminum coating; PE film

Filling range:

1~10g/bag, accuracy:≦±0.1g/bag

Filling method:

Electric scale

Packing roll width:

140mm, 160mm, 180mm

Sealing length:

50, 60, 70, 80mm

Outer bag size

W: 80-100mm; L: 90-120mm

Sealing method:

Inner Pyramid Bag by ultrasonic sealing and cutting

Bag type:

Inner pyramid bag with outer envelope

Quantity of sealing device:

2 sets

Packing speed:

50-70 bags/min (Kindly ask for details)

Motor Power:

220V, 50HZ, 1.5KW

Air supply:

≧0.6Mpa (Can be equipped with air compressor)

Weight:

500KG

Dimension:

3000*900*2300mm(L*W*H)

Pyramid tea bag packing machine:

Mexico pyramid tea bag packaging machine is deeply adapted to the country's unique tea culture, tropical climate, and the predominantly small and medium-sized tea enterprises.

It emphasizes moisture-proof and heat-resistant properties, flexible adaptability, and high cost-effectiveness, making it the preferred equipment for Mexican tea companies seeking automation upgrades. The Mexican tea market primarily features traditional herbal teas, mint teas, and citrus-flavored teas. Influenced by the tropical climate, tea packaging requires strong moisture-proof and oxidation-proof capabilities, and the machine fully meets these core requirements.

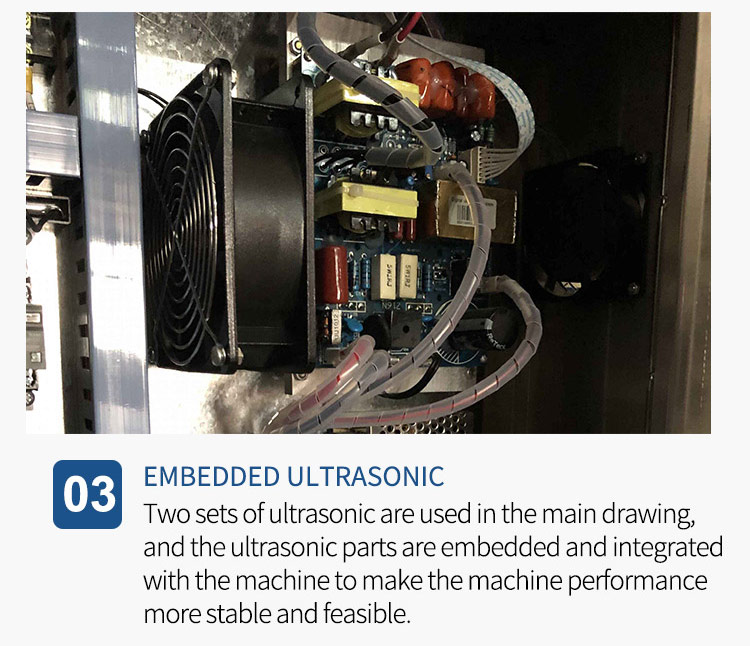

The machine employs a double-sealed protection design, combining imported ultrasonic sealing technology with a high-temperature resistant coating to effectively isolate air and moisture, preventing tea from deteriorating in hot and humid environments and extending its shelf life. The metering system supports flexible adaptation to multiple specifications from 1-6g, accurately matching the packaging needs of small-batch herbal teas and large-batch flavored teas. The packaging speed is infinitely adjustable from 25-50 bags/minute, catering to both customized production and large-scale mass production needs of small and medium-sized tea enterprises.

The machine body is made of corrosion-resistant, high-temperature-resistant food-grade stainless steel, which is easy to clean and not prone to aging. It is suitable for the space layout of small and medium-sized factories in Mexico, and its weight is controlled between 450-600Kg, making it easy to move and adjust. It has low energy consumption and low noise, aligning with Mexico's environmentally friendly production concepts, and is compatible with environmentally friendly filter materials such as nylon and biodegradable PLA. The PLC touch screen human-machine interface is easy to operate, requiring no professional training. It supports the storage and quick switching of multiple sets of parameters, and automatically alarms and shuts down in case of failure, lowering the operating threshold and helping Mexican tea companies create distinctive tea products and enhance their market competitiveness.
